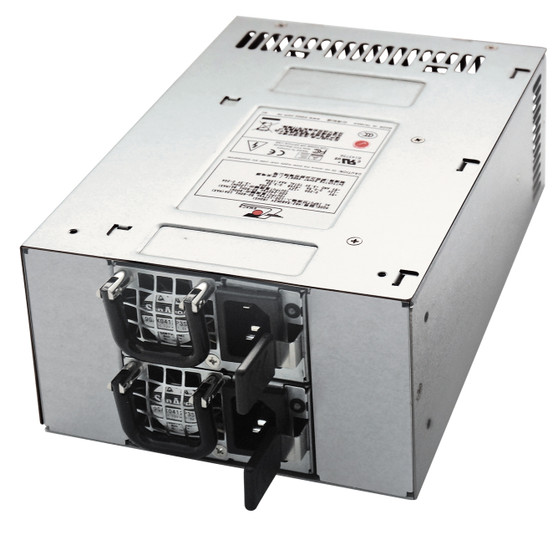

Product Description
OUTPUT WATTAGE
600W
BEST SOLUTION FOR
Label
DIMENSION
222x150x86(mm)
8.74x5.91x3.39(inch)
INPUT SPEC
"VOLTAGE： 100～264VAC FULL RANGE FREQUENCY： 47～63HZINPUT CURRENT：10A (RMS) FOR 115 VAC / 5A (RMS) FOR 230 VAC INRUSH CURRENT：40A MAX. FOR 115 VAC PER MODULE / 60A MAX. FOR 230 VAC PER MODULE(AT 25 DEGREES AMBIENT COLD START FOR EACH POWER UNIT)PFC: UP T"
DC OUTPUT SPEC
| Output Voltage | Output Current Min. | Output Current Max. | Regulation Load | Regulation Line | Output Ripple & Noise Max.[P-P] |
| +5V | 0.5 | 20 | ±5% | ±1% | 50mV |
| +12V | 2 | 50 | ±5% | ±1% | 120mV |
| 3.3V | 0.5 | 20 | ±5% | ±1% | 50mV |
| -12V | 0 | 0.5 | ±10% | ±1% | 120mV |
| +5VSB | 0.1 | 3.5 | ±5% | ±1% | 50mV |
FEATURES
"* TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN ALL THE DC OUTPUT VOLTAGE MUST BE MAINTAIN 16mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE (75% LOADING) * THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 86%"
