Product Description
Revolutionize Your NAS Storage with All-SSD Performance

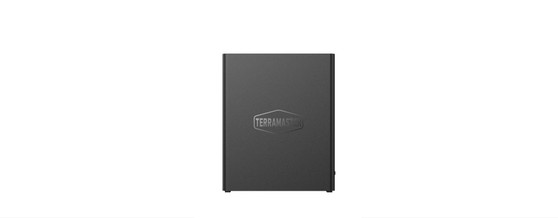

Introducing the F8 SSD Plus, the industry's first custom-built, 8-bay, all-SSD NAS designed specifically for small businesses. Featuring an Intel Core 8-core, 8-thread CPU, it is the most robust palm-sized 8-bay NAS currently available, possesses superior processing speeds and is designed to be more compact than its competitors.
The F8 SSD Plus provides small business users with exceptional performance for virtualization, databases, and websites. Domestic users will benefit from its remarkable processing speed and near-silent operation as it provides the ultimate hardware solution for data backup and multimedia services.
The F8 SSD will fulfill any consumer requirements via its combination of speed, power, and efficiency.
Unbridled Potential and Capabilities
Get ready to experience the F8 SSD Plus -high-performance hardware containing an Intel Core i3 8-core, 8-thread processor with a turbo frequency up to 3.8GHz. It features integrated Intel UHD Graphics with a dynamic frequency of 1.25GHz, 32 execution units, 4K hardware decoding, and AES NI hardware encryption support.
This powerhouse is further enhanced by 16GB of lightning-fast DDR5 4800MHz memory and a 10Gbps Ethernet port to unlock a world of high-performance network connectivity. Its bespoke design is perfect for small business users seeking to address virtualization and database demands while simultaneously functioning as the perfect multimedia server for domestic users.
The F8 SSD Plus will unleash the full potential of your storage needs.
Quieter Performance for a Quieter Life
The F8 SSD Plus is renowned for its exceptional performance and its remarkable ability to operate at a much lower volume than standard devices.
By employing SSDs as its storage medium, the F8 SSD Plus eliminates the noise generated by multiple mechanical hard drives.
The innovative active cooling design features upper and lower convection, and each SSD is equipped with a heat sink. Additionally, silent fans and other efficient cooling features ensure the F8 SSD Plus maintains a low temperature and remains quiet, even under full load.
In standby mode, its noise level is virtually imperceptible (< 19dB) which provides an ultra-silent user experience. With its compact size and ultra-quiet operation, the F8 SSD Plus blends seamlessly into any home environment, meeting your placement needs effortlessly.
| Processor | |
| Processor Model | Intel® i3 N305 |
| Processor Architecture | x86 64-bit |
| Processor Frequency | Max burst up to 3.8 GHz |
| CPU Single-Core Score | N/A |
| Hardware Encryption Engine | √ |
| Hardware Transcoding Engine | H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60 |
| Memory | |
| System Memory | 16 GB DDR5 non-ECC SODIMM |
| Pre-installed Memory Module | 16 GB DDR5 non-ECC SODIMM (1x 16 GB) |
| Total Memory Slot Number | 1 × DDR5 SODIMM |
| Maximum Supported Memory | 32 GB DDR5 non-ECC SODIMM |
| Note | TerraMaster reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. |
| Storage | |
| Disk Slot Number | N/A |
| Compatible Drive types | N/A |
| N/A | |
| N/A | |
| Maximum Internal Raw Storage Capacity | 64 TB (8 TB x8) (Capacity may vary by RAID types) |
| Drive Hot Swap | N/A |
| Note | Hard drive vendors will release their latest models of hard drives, and Maximum internal raw storage capacity may be adjusted accordingly. The maximum single volume size is not directly related to the maximum raw capacity. |
| File System | |
| Internal Drive | Btrfs, EXT4 |
| External Drive | EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS |
| External Ports | |
| RJ-45 1GbE Network Port | N/A |
| RJ-45 2.5GbE Network Port | N/A |
| RJ-45 10GbE Network Port | 1 |
| SFP+ 10GbE Network Port | / |
| USB3.2 Host Port | 3 x 10 Gbps |
| USB2.0 Host Port | N/A |
| COM | N/A |
| HDMI | 1 x HDMI 2.b |
| VGA | N/A |
| PCIe Slots | N/A |
| M.2 2280 NVMe Slot | 8(PCIe 3.0 x1） |
| Appearance | |
| Size (H*W*D) | 177 x 60 x 140 mm |
| Packaging Size (H*W*D) | 220 x 195 x 183 mm |
| Weight | Net Weight: 0.7Kg , Gross Weight: 1.7 Kg |
| Others | |
| System Fan | 50 x 50 x 10mm 2PCS |
| Fan Mode | Smart, High speed, Middle speed, Low speed |
| Noise Level | 19.0 dB(A) (Using M.2 SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m) |
| Power Supply | 72 W |
| Redundancy Power Supply | N/A |
| AC Input Voltage | 100V - 240V AC |
| Current Frequency | 50/60 Hz, Single frequency |
| Power Consumption | 45.0 W(Fully loaded Seagate 2TB M.2 SSDs in read/write state) |
| 9.0 W (Fully loaded Seagate 2TB M.2 SSDs in hibernation) | |
| Limited warranty | 2 years |
| Certificate | FCC, CE, CCC, KC |
| Environment | RoHS, WEEE |
| Temperature | |
| Working Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Package Contents | |
| Host unit (x1) | |
| Power cord (x1) | |
| Power Adapter(x1) | |
| RJ-45 network cable (x1) | |
| Quick Installation Guide (x1) | |
| Limited Warranty Note(x1) | |
| Screws (a few) | |
| TOS Features | |
| OS Supported | |
| Supported Client OS | Windows OS, Mac OS, Linux OS |
| Supported Web Browsers | Google Chrome 97.0 or later, Mozilla Firefox 9.3, Apple Safari 12.1 ; Microsoft Edge 99.0.000 or later version. |
| Supported mobile OS | iOS14.0, Android 10.0 or later version |
| Storage Management | |
| Supported RAID Types | TRAID, TRAID＋, Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10 |
| Maximum Internal Volume Number | 256 |
| Maximum iSCSI Target | 128 |
| Maximum iSCSI LUN | 256 |
| Volume Expansion with Larger HDDs | TRAID, TRAID＋, RAID 5, RAID 6, RAID 10 |
| Volume Expansion by Adding a HDD | N/A |
| RAID Migration | √ |
| SSD Cache | √ |
| Hot Spare | √ |
| SSD TRIM | √ |
| Hard Drive S.M.A.R.T. | √ |
| Seagate IHM | √ |
| NVRAM write cache(BBU-protected) | N/A |
| Shared Folder Snapshot | √ |
| LUN Snapshot | √ |
| File Services | |
| File Protocol | SMB/AFP/NFS/FTP/SFTP/WebDAV |
| Maximum Concurrent SMB/AFP/FTP/SFTP Connections | 512 |
| Windows Access Control List (ACL) Integration | √ |
| NFS Kerberos Authentication | √ |
| Account & Shared Folder | |
| Maximum local user's account number | 2048 |
| Maximum local group number | 512 |
| Maximum shared folders number | 512 |
| Maximum shared folders syncing tasks | 8 |
| Backup | |
| Rsync Backup | √ |
| Duple Backup | √ |
| Centralized Backup | √ |
| Snapshot | √ |
| USB Backup | √ |
| Cloud Sync | √ |
| Time Machine Backup | √ |
| File System Snapshot | √ |
| TFM Backup | √ |
| Networking | |
| TCP/IP | IPv4/IPv6 |
| Protocols | CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP |
| Link Aggregation | √ |
| DLNA Compliance | √ |
| VPN Client | √ |
| VPN Server | √ |
| Proxy Client | √ |
| Proxy Server | N/A |
| UPnP/Bonjour Discovery | √ |
| TNAS.online Remote Access | √ |
| DDNS | √ |
| Access Right Management | |
| Batch users creation | N/A |
| Import/Export users | √ |
| User Quota Management | √ |
| Local user access control for CIFS/SAMBA and FTP | √ |
| Domain Authentication | |
| AD Domain | √ |
| LDAP Client | √ |
| LDAP Server | N/A |
| Security | |
| Firewall Protection | √ |
| Account Auto-block Protection | √ |
| AES Shared Folder Encryption | √ |
| Importable SSL certificate | √ |
| Instant Alert via email, Desktop Notification, Beep | √ |
| RSA 2048 Encryption（TOS 6.0） | √ |
| PAM (Pluggable Authentication Modules) | √ |
| OTP Authentication（TOS 6.0） | √ |
| HyperLock File System（TOS 6.0） | √ |
| Power Management | |
| Power Resume | √ |
| Scheduled Power On/Off | √ |
| Wake up On LAN（WOL） | √ |
| UPS Supported | √ |
| Administration | |
| Multi-window, Multi-task System Management | √ |
| Custom Desktop | √ |
| Control Panel | √ |
| Resource Monitor | √ |
| Syslog | √ |
| OS UI Language | English, German, French, Spanish, Italian, Magyar, Chinese, Japanese, Korean, Turkish, Portuguese, Russian |
| Applications | |
| Application Center | √ |
| iSCSI Target | √ |
| Terra Photos | √ |
| TerraSync | √ |
| Duple Backup | √ |
| CloudSync | √ |
| Centralized Backup | √ |
| USB Backup | √ |
| VPN Server | √ |
| Transmission | √ |
| qBittorrent | √ |
| Aria 2 | √ |
| Terra Search | √ |
| Deduplication | √ |
| Web Server | √ |
| Clam Antivirus | √ |
| EMBY | √ |
| Multi Media Server | √ |
| Plex Media Server | √ |
| Docker Manager | √ |
| Snapshot | √ |
